Oracle adalah product database yang terkenal didunia, mempunyai banyak customer, dan memiliki feature lengkap sebagai sebuah database. Sedangkan Solaris 10 adalah sebuah Sistem operasi yang juga terkenal handal, stabil, dan mempunyai basis user yang besar. Gabungan keduanya akan menghasilkan sebuah server yang handal, dengan performance yang tinggi.

Artikel ini akan membahas instalasi Oracle 10g pada Solaris 10 x86(bisa digunakan untuk pada solaris sparc).

anda dapat juga download The Study Case & solution Lab Oracle & SQL Expert

Video Instalasi & Uninstallasi Dapat Di download di
1. Download Video Install & Uninstall Oracle Database In Solaris 10
2. Download Video Install & Uninstall Oracle Database In Windows
3. Download Video Install Oracle, Database, Listener Using VMWare
4. Download Video Install Oracle, Database, Listener Using VMWare

Oracle 10 memerlukan :

- RAM 1GB (terutama berpengaruh pada saat database configuration)

- CPU 3 GHz

- space: 20GB (tidak perlu sebanyak ini)

- minimal space untuk /tmp: 512MB (oracle akan memeriksa parameter ini)

Tahap-tahap Instalasi:

=============

Oracle is a popular database product in the world, has many customers, and have complete feature as a database. While Solaris 10 is an operating system that also famous for reliable, stable, and has a large user base. Combined they will produce a reliable server, with high performance.

This article will discuss the installation of Oracle 10g on Solaris 10 x86 (can use in solaris sparc)

Video Installation & Uninstallation can be download in

1. Download Video Install & Uninstall Oracle Database In Solaris 10
2. Download Video Install & Uninstall Oracle Database In Windows
3. Download Video Install Oracle, Database, Listener Using VMWare
4. Download Video Install Oracle, Database, Listener Using VMWare

Oracle 10 requires:
- 1GB of RAM (especially influential at the time of the database configuration)
- CPU 3 GHz
- Space: 20GB (not necessarily this much)
- A minimum of space for / tmp: 512 (oracle will check this parameter)

Stages of Installation:

=========

1. Download Oracle dari www.oracle.com.
Download oracle 10g for Solaris x86. Setelah selesai, extract Oracle installer ke harddisk, check type x86 or sparc
Download Oracle 10g for Solaris x86. Once completed, extract the Oracle installer to the hard drive , check type x86 or sparc

root@solaris-teguh # uname -a
SunOS 5620sam-application02 5.10 Generic_139556-08 i86pc i386 i86pc

root@solaris-teguh # showrev
Hostname: root@solaris-teguh
Hostid: 22bbcc6655
Release: 5.10
Kernel architecture: i86pc
Application architecture: i386
Hardware provider:
Domain:
Kernel version: SunOS 5.10 Generic_139556-08
root@solaris-teguh #

root@solaris-teguh #unzip 10202_database_solx86.zip
root@solaris-teguh # gunzip < ora10_sol10.tar.gz | tar -xvf -

ORACLE_BASE=/export/home/oracle;
ORACLE_HOME=$ORACLE_BASE/product/10.2.0/db_1
ORACLE_SID=TGH;

2. Check Solaris packages and install
Oracle memerlukan beberapa paket untuk instalasinya. Paket2 ini dapat anda temukan pada DVD
instalasi Solaris. Masuk ke dalam directory tempat package Solaris dan jalankan command dari sana.
Ketik command berikut untuk mengecek paket yang diperlukan:
===============
Oracle requires some packages for installation. Paket2 this can be found on DVD, Solaris installation. Go to the directory where the Solaris package and run the command from there.
Type the following command to check the package required:
==================

# pkginfo -i SUNWlibms SUNWtoo SUNWi1cs SUNWi15cs SUNWxwfnt SUNWxwplt
SUNWmfrun SUNWxwplr SUNWxwdv SUNWgcc SUNWbtool SUNWi1of SUNWhea SUNWlibm
SUNWsprot SUNWuiu8
Untuk menginstall paket:
# pkgadd -d . SUNWlibms SUNWtoo SUNWi1cs SUNWi15cs SUNWxwfnt SUNWxwplt
SUNWmfrun SUNWxwplr SUNWxwdv SUNWgcc SUNWbtool SUNWi1of SUNWhea SUNWlibm
SUNWsprot SUNWuiu8

example result

root@solaris-teguh #pkginfo SUNWlibms SUNWtoo SUNWi1cs SUNWi15cs SUNWxwfnt SUNWxwplt SUNWmfrun SUNWxwplr SUNWxwdv SUNWgcc SUNWbtool SUNWi1of SUNWhea SUNWlibm SUNWsprot SUNWuiu8

system SUNWbtool CCS tools bundled with SunOS

system SUNWgcc gcc - The GNU C compiler

system SUNWhea SunOS Header Files

system SUNWi15cs X11 ISO8859-15 Codeset Support

system SUNWi1cs X11 ISO8859-1 Codeset Support

system SUNWi1of ISO-8859-1 (Latin-1) Optional Fonts

system SUNWlibm Math & Microtasking Library Headers & Lint Files (Usr)

system SUNWlibms Math & Microtasking Libraries (Usr)

system SUNWmfrun Motif RunTime Kit

system SUNWsprot Solaris Bundled tools

system SUNWtoo Programming Tools

system SUNWuiu8 Iconv modules for UTF-8 Locale

system SUNWxwdv X Windows System Window Drivers

system SUNWxwfnt X Window System platform required fonts

system SUNWxwplr X Window System platform software configuration

system SUNWxwplt X Window System platform software

root@solaris-teguh #

3. Persiapkan Group, User, serta permission untuk instalasi (Prepare Group, User, and permissions for installation)

Create Group
Buat group untuk instalasi: / Create a group for installation:

root@solaris-teguh #cd /export/

root@solaris-teguh #ls

root@solaris-teguh #mkdir home

root@solaris-teguh #cd home/

root@solaris-teguh #mkdir oracle

root@solaris-teguh #cd ..

root@solaris-teguh #pwd

/export

root@solaris-teguh #ls

home

root@solaris-teguh #

root@solaris-teguh #cd /export/home/oracle/

root@solaris-teguh #pwd

/export/home/oracle

root@solaris-teguh #

root@solaris-teguh #groupadd oinstall

root@solaris-teguh #groupadd dba

root@solaris-teguh #

Create user
useradd -d /export/home/oracle -g dba -G oinstall -m -s /usr/bin/bash oracle
or
useradd -g oinstall -G dba -d /export/home/oracle oracle

example result

root@solaris-teguh #useradd -g oinstall -G dba -d /export/home/oracle oracle

root@solaris-teguh #

Setting owner & permission dari home directory user oracle

root@solaris-teguh #chown -R oracle:dba /export/home/oracle

root@solaris-teguh #cd /export/home/

root@solaris-teguh #ls -l

total 2

drwxr-xr-x 2 oracle dba 512 Aug 16 11:08 oracle

================
or you can using command

root@solaris-teguh #mkdir /export/home

root@solaris-teguh #mkdir /export/home/oracle

root@solaris-teguh #cd /export/home/oracle/

root@solaris-teguh #groupadd oinstall

root@solaris-teguh #groupadd dba

root@solaris-teguh #useradd -d /export/home/oracle -g dba -G oinstall -m -s /usr/bin/bash oracle

root@solaris-teguh #chown -R oracle:dba /export/home/oracle

root@solaris-teguh #

==========================

creata password oracle

root@solaris-teguh #cd oracle/

root@solaris-teguh #ls -l

total 0

root@solaris-teguh #

root@solaris-teguh #passwd oracle

New Password:

Re-enter new Password:

passwd: password successfully changed for oracle

root@solaris-teguh #

4. Setting parameter system, dan restart agar dapat digunakan oleh system
Edit file /etc/system, dan tambahkan entries berikut:
Setting system parameters, and restart in order to be used by system
Edit the file / etc / system, and add the following entries:
example result

root@solaris-teguh #id

uid=0(root) gid=0(root)

root@solaris-teguh #vi /etc/sys

sysdef sysevent/ syslog.conf syslog.pid system

root@solaris-teguh #vi /etc/system

"/etc/system" 78 lines, 1883 characters

*ident "@(#)system 1.18 97/06/27 SMI" /* SVR4 1.5 */

* SYSTEM SPECIFICATION FILE

* moddir:

* Set the search path for modules. This has a format similar to the

* csh path variable. If the module isn't found in the first directory

* it tries the second and so on. The default is /kernel /usr/kernel

* Example:

* moddir: /kernel /usr/kernel /other/modules

* root device and root filesystem configuration:

* The following may be used to override the defaults provided by

* the boot program:

* rootfs: Set the filesystem type of the root.

* rootdev: Set the root device. This should be a fully

* expanded physical pathname. The default is the

* physical pathname of the device where the boot

* program resides. The physical pathname is

* highly platform and configuration dependent.

* Example:

* rootfs:ufs

* rootdev:/sbus@1,f8000000/esp@0,800000/sd@3,0:a

* (Swap device configuration should be specified in /etc/vfstab.)

* exclude:

* Modules appearing in the moddir path which are NOT to be loaded,

* even if referenced. Note that `exclude' accepts either a module name,

* or a filename which includes the directory.

* Examples:

* exclude: win

* exclude: sys/shmsys

* forceload:

* Cause these modules to be loaded at boot time, (just before mounting

* the root filesystem) rather than at first reference. Note that

* forceload expects a filename which includes the directory. Also

* note that loading a module does not necessarily imply that it will

* be installed.

* Example:

* forceload: drv/foo

* set:

* Set an integer variable in the kernel or a module to a new value.

* This facility should be used with caution. See system(4).

* Examples:

* To set variables in 'unix':

* set nautopush=32

* set maxusers=40

* To set a variable named 'debug' in the module named 'test_module'

* set test_module:debug = 0x13

set noexec_user_stack=1

set semsys:seminfo_semmni=100

set semsys:seminfo_semmns=1024

set semsys:seminfo_semmsl=256

set semsys:seminfo_semvmx=32767

set shmsys:shminfo_shmmax=4294967295

set shmsys:shminfo_shmmin=1

set shmsys:shminfo_shmmni=100

set shmsys:shminfo_shmseg=10

"/etc/system" 86 lines, 2153 characters

root@solaris-teguh #

restart mesin

untuk restart:

root@solaris-teguh #shutdown -i6 -g0 -y

Shutdown started. Tue Aug 16 11:28:01 WIT 2011

Changing to init state 6 - please wait

Cannot send to device dtremote because it's not a tty

Broadcast Message from root (pts/6) on solaris-teguh Tue Aug 16 11:28:02...

THE SYSTEM solaris-teguh IS BEING SHUT DOWN NOW ! ! !

Log off now or risk your files being damaged

updating /platform/i86pc/boot_archive

=============

or you can

root@solaris-teguh #init 6

updating /platform/i86pc/boot_archive

===========

5. Setting environment untuk user oracle. Gunakan user oracle untuk keperluan ini.
Ganti user:
Setting environment for oracle user. Use the oracle user for these purposes.
Replace user:

# su – oracle

Edit file /export/home/oracle.profile, and add entry:

root@solaris-teguh #pwd

/export/home/oracle

root@solaris-teguh #id

uid=0(root) gid=0(root)

root@solaris-teguh #su oracle

root@solaris-teguh #bash

root@solaris-teguh #id

uid=100(oracle) gid=101(dba)

root@solaris-teguh #vi .profile

".profile" [New file]

#Oracle Settings

TMP=/tmp; export TMP

TMPDIR=$TMP; export TMPDIR

# Select the appropriate ORACLE_BASE

#ORACLE_BASE=/export/home/oracle; export ORACLE_BASE

ORACLE_BASE=/export/home/oracle; export ORACLE_BASE

ORACLE_HOME=$ORACLE_BASE/product/10.2.0/db_1; export ORACLE_HOME

ORACLE_SID=TGH; export ORACLE_SID

PATH=$ORACLE_HOME/bin:$PATH; export PATH

".profile" [New file] 11 lines, 349 characters

root@solaris-teguh #

check profile

root@solaris-teguh #more .profile

#Oracle Settings

TMP=/tmp; export TMP

TMPDIR=$TMP; export TMPDIR

# Select the appropriate ORACLE_BASE

#ORACLE_BASE=/export/home/oracle; export ORACLE_BASE

ORACLE_BASE=/export/home/oracle; export ORACLE_BASE

ORACLE_HOME=$ORACLE_BASE/product/10.2.0/db_1; export ORACLE_HOME

ORACLE_SID=TGH; export ORACLE_SID

PATH=$ORACLE_HOME/bin:$PATH; export PATH

root@solaris-teguh #

6.1 Install Oracle with Database and Listener

root@solaris-teguh #bash

root@solaris-teguh #cd /data/database/

root@solaris-teguh #id

uid=0(root) gid=0(root)

root@solaris-teguh #su oracle

root@solaris-teguh #id

uid=100(oracle) gid=100(oinstall)

root@solaris-teguh #bash

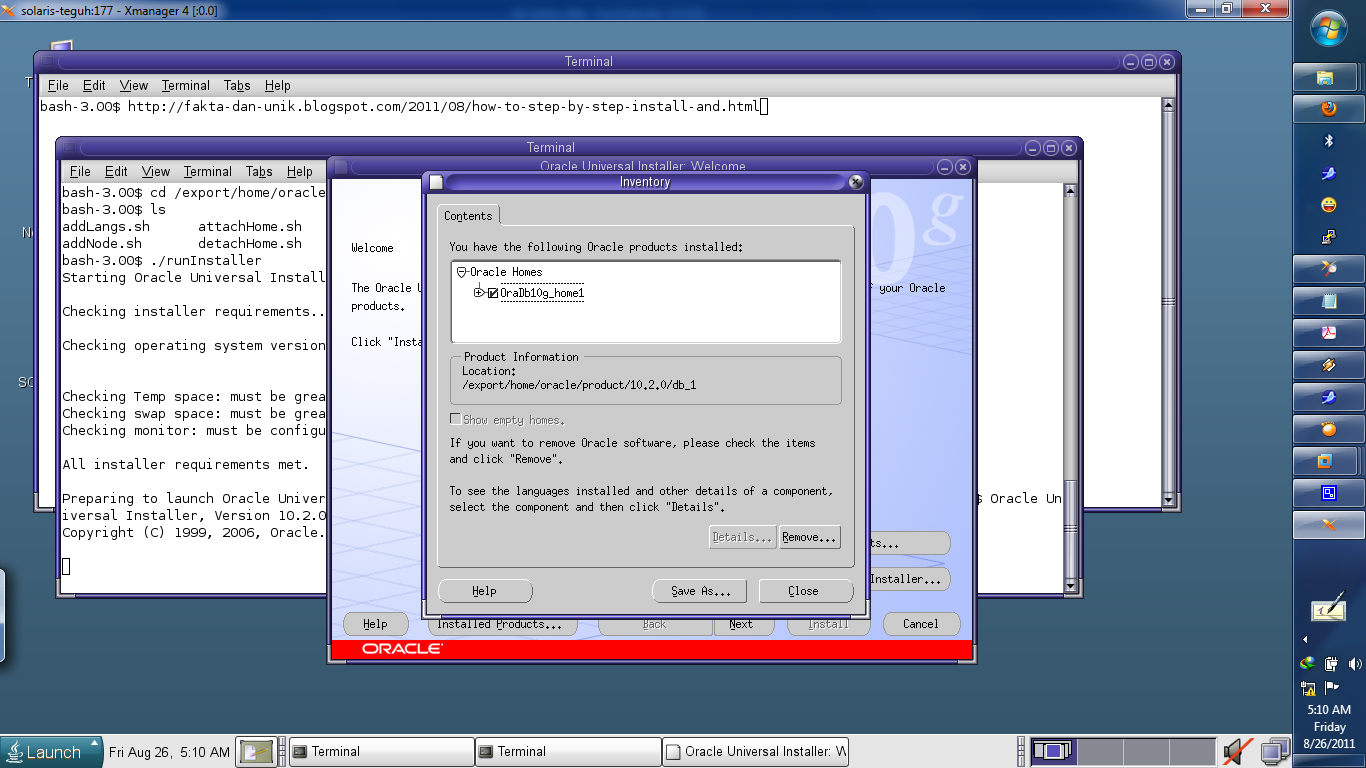

root@solaris-teguh #./runInstaller

Starting Oracle Universal Installer...

Checking installer requirements...

Checking operating system version: must be 5.10. Actual 5.10

Passed

Checking Temp space: must be greater than 250 MB. Actual 1047 MB Passed

Checking swap space: must be greater than 500 MB. Actual 1609 MB Passed

Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed

All installer requirements met.

Preparing to launch Oracle Universal Installer from /tmp/OraInstall2011-08-16_12-04-35PM. Please wait ...

go to root

root@solaris-teguh #

root@solaris-teguh #id

uid=0(root) gid=0(root)

root@solaris-teguh #/export/home/oracle/oraInventory/orainstRoot.sh
Changing permissions of /export/home/oracle/oraInventory to 770.
Changing groupname of /export/home/oracle/oraInventory to dba.
The execution of the script is complete
root@solaris-teguh #/export/home/oracle/product/10.2.0/db_1/root.sh
Running Oracle 10g root.sh script...

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME= /export/home/oracle/product/10.2.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:
Creating /usr/local/bin directory...
   Copying dbhome to /usr/local/bin ...
   Copying oraenv to /usr/local/bin ...
   Copying coraenv to /usr/local/bin ...

Creating /var/opt/oracle/oratab file...
Entries will be added to the /var/opt/oracle/oratab file as needed by
Database Configuration Assistant when a database is created

Finished running generic part of root.sh script.
Now product-specific root actions will be performed.
root@solaris-teguh #
root@solaris-teguh #

root@solaris-teguh #Oracle Universal Installer, Version 10.2.0.2.0 Production

root@solaris-teguh #

8. Buat script untuk menjalankan Oracle ketika booting(Create a script to run the Oracle when booting)
Buat file /etc/init.d/oracle, dan tambahkan entry berikut:(Create the file / etc / init.d / oracle, and add the following entry:)

root@solaris-teguh #cd /etc/init.d/

root@solaris-teguh #vi oracle

"oracle" [New file]

#!/bin/sh

ORACLE_HOME=/export/home/oracle/product/10.2.0/db_1

ORACLE_OWNER=oracle

if [ ! -f $ORACLE_HOME/bin/dbstart ]

then

echo "Oracle startup: cannot start"

exit

case "$1" in

'start')
# Start the Oracle databases and listeners
su - $ORACLE_OWNER -c "$ORACLE_HOME/bin/dbstart $ORACLE_HOME"
su - $ORACLE_OWNER -c "$ORACLE_HOME/bin/lsnrctl start"
su - $ORA_OWNER -c "$ORA_HOME/bin/emctl start dbconsole"
su - $ORA_OWNER -c "$ORA_HOME/bin/isqlplusctl start"
;;

'stop')
# Stop the Oracle databases and listeners
su - $ORA_OWNER -c "$ORA_HOME/bin/isqlplusctl stop"
su - $ORA_OWNER -c "$ORA_HOME/bin/emctl stop dbconsole"
su - $ORACLE_OWNER -c "$ORACLE_HOME/bin/lsnrctl stop"
su - $ORACLE_OWNER -c "$ORACLE_HOME/bin/dbshut $ORACLE_HOME"

;;

esac

"oracle" [New file] 18 lines, 441 characters

root@solaris-teguh #

Setting permissions to be executed:

root@solaris-teguh #ls -l oracle

-rw-r--r-- 1 root root 441 Aug 16 12:41 oracle

root@solaris-teguh #chmod 775 oracle

root@solaris-teguh #ls -l oracle

-rwxrwxr-x 1 root root 441 Aug 16 12:41 oracle

root@solaris-teguh #

Settings that can be executed when booting:

root@solaris-teguh #ln -s /etc/init.d/oracle /etc/rc3.d/S99oracle

root@solaris-teguh #

Check Status Oracle Database

root@solaris-teguh #su - oracle

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

$ bash

bash-3.00$ sqlplus

SQL*Plus: Release 10.2.0.2.0 - Production on Tue Aug 16 12:51:02 2011

Enter user-name: sys as sysdba

Enter password:

Connected to an idle instance.

SQL>

If the web administrator services is down check that the listener is running, if not started, open a terminal shell and login as oracle and start listener and then start the web console.
root@solaris-teguh # su – oracle
$ lsnrctl start
$ emctl start dbconsole

7. Uninstall Oracle 10g

Open terminal shell window and login as oracle user

Then remove all databases by running

$dbca

Then stop oracle Database Web Console

$ORACLE_HOME/bin/emctl stop dbconsole

Then stop the Oracle listener

$ORACLE_HOME/bin/lsnrctl stop

Stop iSQL*Plus

$ORACLE_HOME/bin/isqlplusctl stop

Stop Ultra Search

$ORACLE_HOME/bin/searchctl stop

Start Oracle Universal installer and deinstall Oracle home and products that you want to remove

$ORACLE_HOME/oui/bin/runInstaller

Unistall Oracle & Database
Uinstall Listener

root@solaris-teguh #su - oracle

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

$ bash

bash-3.00$ netca
