1. Check snmp & snmptrap community
A:TeguhRouter# show system security snmp community
==============================================================================
Communities
==============================================================================
community access view version group name
------------------------------------------------------------------------------
cli-li-readwrite n/a li-view v2c cli-li-readwrite
cli-readonly r iso v2c cli-readonly
cli-readwrite rw iso v2c cli-readwrite
public r no-security v1 v2c snmp-ro
public n/a n/a v2c snmp-trap
teguht rwa iso v2c snmp-rwa
------------------------------------------------------------------------------
No. of Communities: 9
==============================================================================
A:TeguhRouter# show log snmp-trap-group
===============================================================================
SNMP Trap Groups
===============================================================================
id name
port address
-------------------------------------------------------------------------------
98 nms-all
162 10.10.10.10
===============================================================================
A:TeguhRouter#
2. create router interface for isis
# configure router interface "loopback_Teguh_Triharto"
# info
A:TeguhRouter# configure router interface "loopback_Teguh_Triharto"
*A:TeguhRouter>config>router>if$ info
----------------------------------------------
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>if$ address 1.2.3.4/24
*A:TeguhRouter>config>router>if$ loopback
*A:TeguhRouter>config>router>if$ info
----------------------------------------------
address 1.2.3.4/24
loopback
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>if$ exit
*A:TeguhRouter#
*A:TeguhRouter# show router interface "loopback_Teguh_Triharto"
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
loopback_Teguh_Triharto Up Up/Down Network loopback
1.2.3.4/24 n/a
-------------------------------------------------------------------------------
Interfaces : 1
===============================================================================
*A:TeguhRouter#
3. configure isis interface
# configure router isis interface "loopback_Teguh_Triharto"
*A:TeguhRouter# configure router isis interface "loopback_Teguh_Triharto"
*A:TeguhRouter>config>router>isis>if# info
----------------------------------------------
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>isis>if# info
----------------------------------------------
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>isis>if# exit
*A:TeguhRouter#
*A:TeguhRouter# show router isis interface "loopback_Teguh_Triharto"
===============================================================================
Rtr Base ISIS Instance 0 Interfaces
===============================================================================
Interface Level CircID Oper State L1/L2 Metric
-------------------------------------------------------------------------------
loopback_Teguh_Triharto L1L2 107 Up 0/0
-------------------------------------------------------------------------------
Interfaces : 1
===============================================================================
*A:TeguhRouter#
4. test shutdown router interface "loopback_Teguh_Triharto"
# configure router interface "loopback_Teguh_Triharto"
*A:TeguhRouter# configure router interface "loopback_Teguh_Triharto"
*A:TeguhRouter>config>router>if# info
----------------------------------------------
address 1.2.3.4/24
loopback
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>if#
5. create router interface for ospf
A:TeguhRouter# configure router interface loopback_Teguh_Triharto-ospf
*A:TeguhRouter>config>router>if$ address 4.3.2.1/24
*A:TeguhRouter>config>router>if$ loopback
*A:TeguhRouter>config>router>if$ info
----------------------------------------------
address 4.3.2.1/24
loopback
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>if$
*A:TeguhRouter# show router interface "loopback_Teguh_Triharto-ospf"
===============================================================================
Interface Table (Router: Base)
===============================================================================
Interface-Name Adm Opr(v4/v6) Mode Port/SapId
IP-Address PfxState
-------------------------------------------------------------------------------
loopback_Teguh_Triharto-ospf Up Up/Down Network loopback
4.3.2.1/24 n/a
-------------------------------------------------------------------------------
Interfaces : 1
===============================================================================
*A:TeguhRouter#
6. configure ospf area
*A:TeguhRouter# configure router ospf area 0.0.2.2 interface "loopback_Teguh_Triharto-ospf"
*A:TeguhRouter>config>router>ospf>area>if$ info
----------------------------------------------
no shutdown
----------------------------------------------
*A:TeguhRouter>config>router>ospf>area>if$ no shutdown
*A:TeguhRouter>config>router>ospf>area>if$ exit all
A:TeguhRouter#
A:TeguhRouter# show router ospf area
==================================================================
Rtr Base OSPFv2 Instance 0 Areas
==================================================================
Area Id Type SPF Runs LSA Count LSA Cksum Sum
------------------------------------------------------------------
0.0.0.0 Standard 4 5 0x25d85
0.0.0.11 Standard 0 1 0xe23
0.0.2.2 Standard 1 5 0x141f5
------------------------------------------------------------------
No. of OSPF Areas: 5
==================================================================
A:TeguhRouter# show router ospf area 0.0.2.2
==================================================================
Rtr Base OSPFv2 Instance 0 Area 0.0.2.2
==================================================================
Area Id Type SPF Runs LSA Count LSA Cksum Sum
------------------------------------------------------------------
0.0.2.2 Standard 1 5 0x141f5
==================================================================
A:TeguhRouter# show router ospf area 0.0.2.2 detail
===============================================================================
Rtr Base OSPFv2 Instance 0 Area 0.0.2.2 (detail)
===============================================================================
-------------------------------------------------------------------------------
Configuration
-------------------------------------------------------------------------------
Area Id : 0.0.2.2 Type : Standard
LFA : Include
-------------------------------------------------------------------------------
Statistics
-------------------------------------------------------------------------------
Virtual Links : 0 Total Nbrs : 0
Active IFs : 1 Total IFs : 1
Area Bdr Rtrs : 1 AS Bdr Rtrs : 1
SPF Runs : 1 Last SPF Run : 08/30/2017 16:34:20
Router LSAs : 1 Network LSAs : 0
Summary LSAs : 3 Asbr-summ LSAs : 0
Nssa ext LSAs : 0 Area opaque LSAs : 1
Total LSAs : 5 LSA Cksum Sum : 0x141f5
Blackhole Range : True Unknown LSAs : 0
Export database : False
Export Policies : None
Export Fltrd LSAs: 0
Import Policies : None
Import Fltrd LSAs: 0
===============================================================================
A:TeguhRouter#
7. test shutdown router interface "loopback_Teguh_Triharto-ospf"
A:TeguhRouter# configure router interface "loopback_Teguh_Triharto-ospf"
A:TeguhRouter>config>router>if# info
----------------------------------------------
address 4.3.2.1/24
loopback
no shutdown
----------------------------------------------
A:TeguhRouter>config>router>if# shutdown
*A:TeguhRouter>config>router>if# info
----------------------------------------------
shutdown
address 4.3.2.1/24
loopback
----------------------------------------------
*A:TeguhRouter>config>router>if#

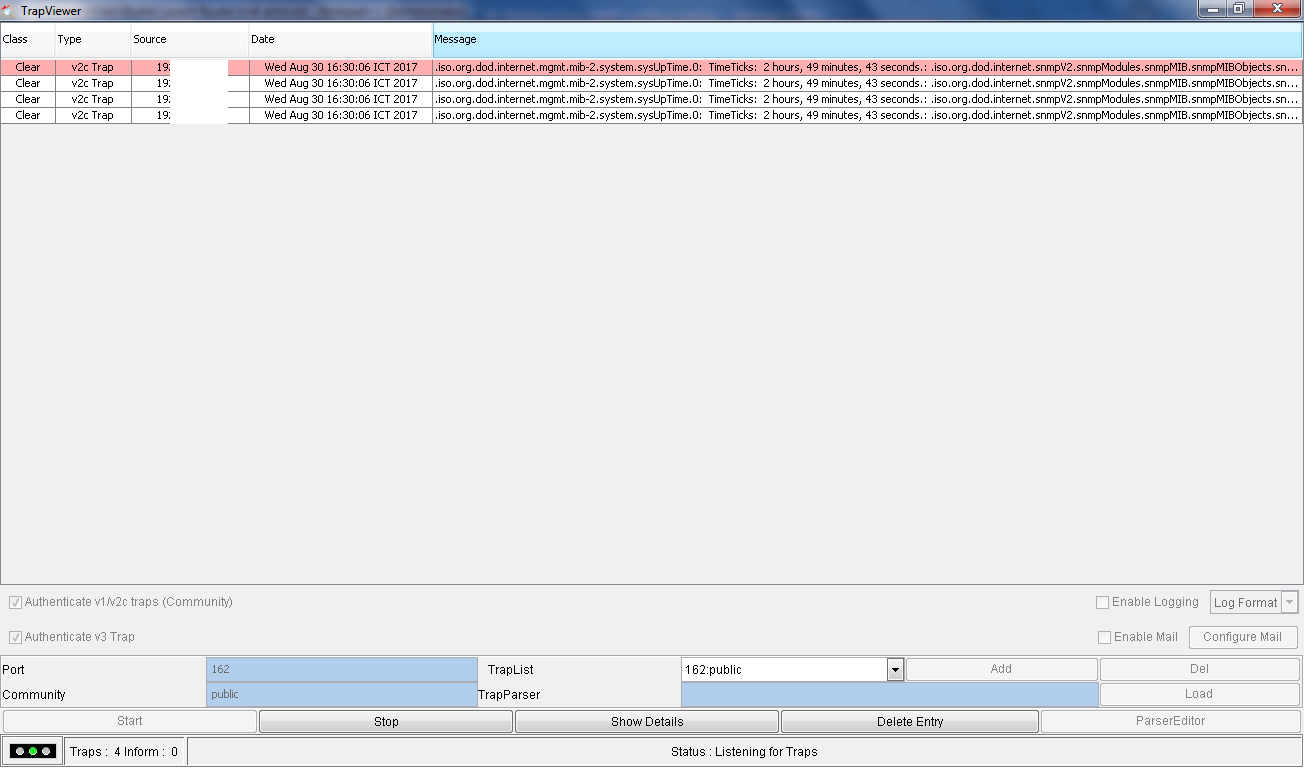

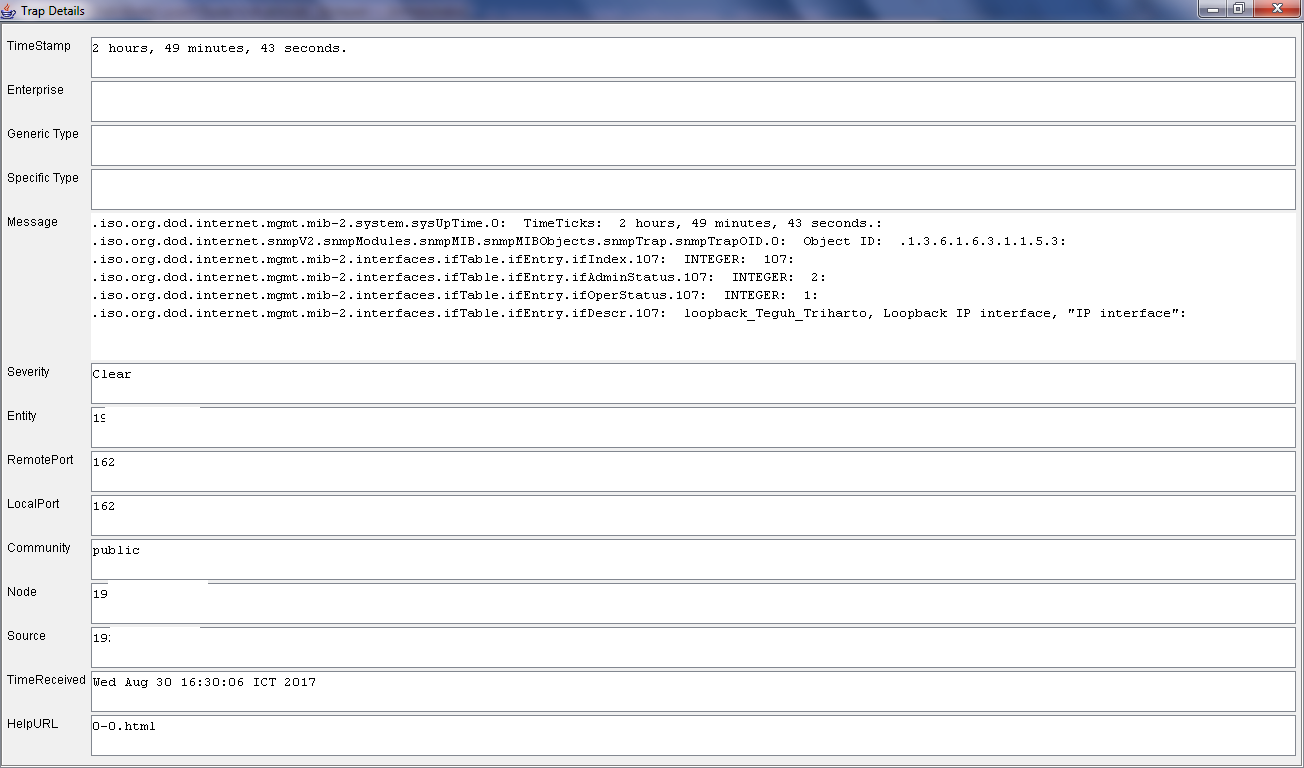

8. Capture snmptrap ISIS
9. Capture snmptrap OSPF
